スクリュー真空ポンプのハウジング

EN-GJL-250製ポンプハウジング

お客様の初期の加工状況

Screw vacuum pump chamber bore

  • 数量が大幅に増加し、部品のばらつきが大きいため、プロジェクト計画とプロセス設計がボトルネックになっている
  • 鋳造品質が変動するため、既存プロセスの工程信頼性が低いという大きな問題がある
  • 連続生産工程をサポートする有資格者が不足している

ソリューションの特徴

  • 正確にマッチした後続の工具による鋳造変動の制御
  • 難しいL/D比を加工する際の最適なガイダンスと振動の回避
  • インサートソリューションによる工具材料費の低減
  • マルチブレードツールソリューションによるサイクルタイムの短縮と生産性の最大化
  • 部品群の工具の複数使用によるコスト削減(20%の削減)

スクープホール

  • Roughing

    粗加工

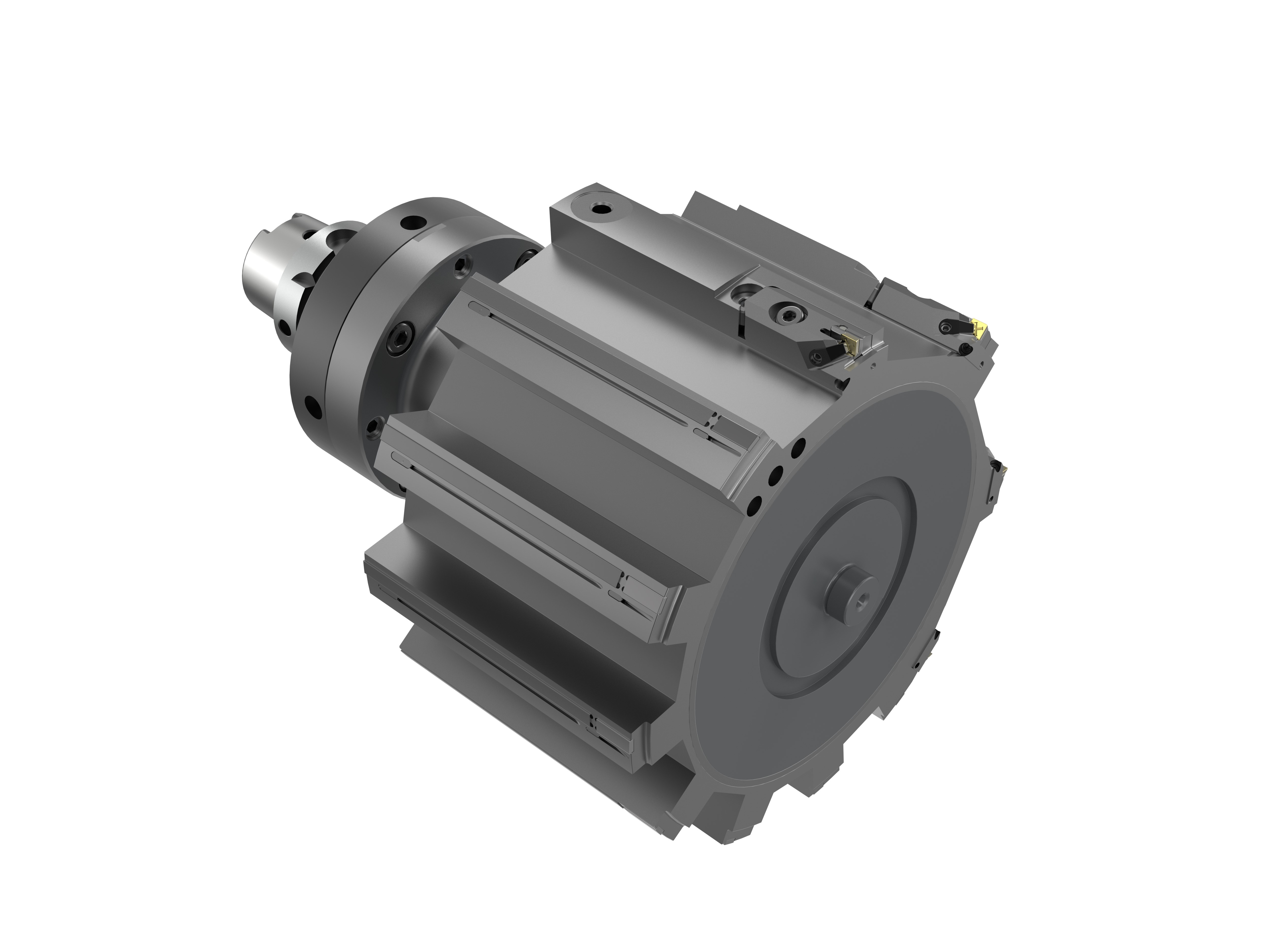

    ガン・ボーリングツール

    • インサート付きタンジェンシャル・ガンボーリング工具
    • 振動ダンパーと安定した工具設計により、高い剛性を保証
    • プレス加工されたタンジェンシャルインサートの使用により、工具材料費を削減

  • Finish

    Finishing

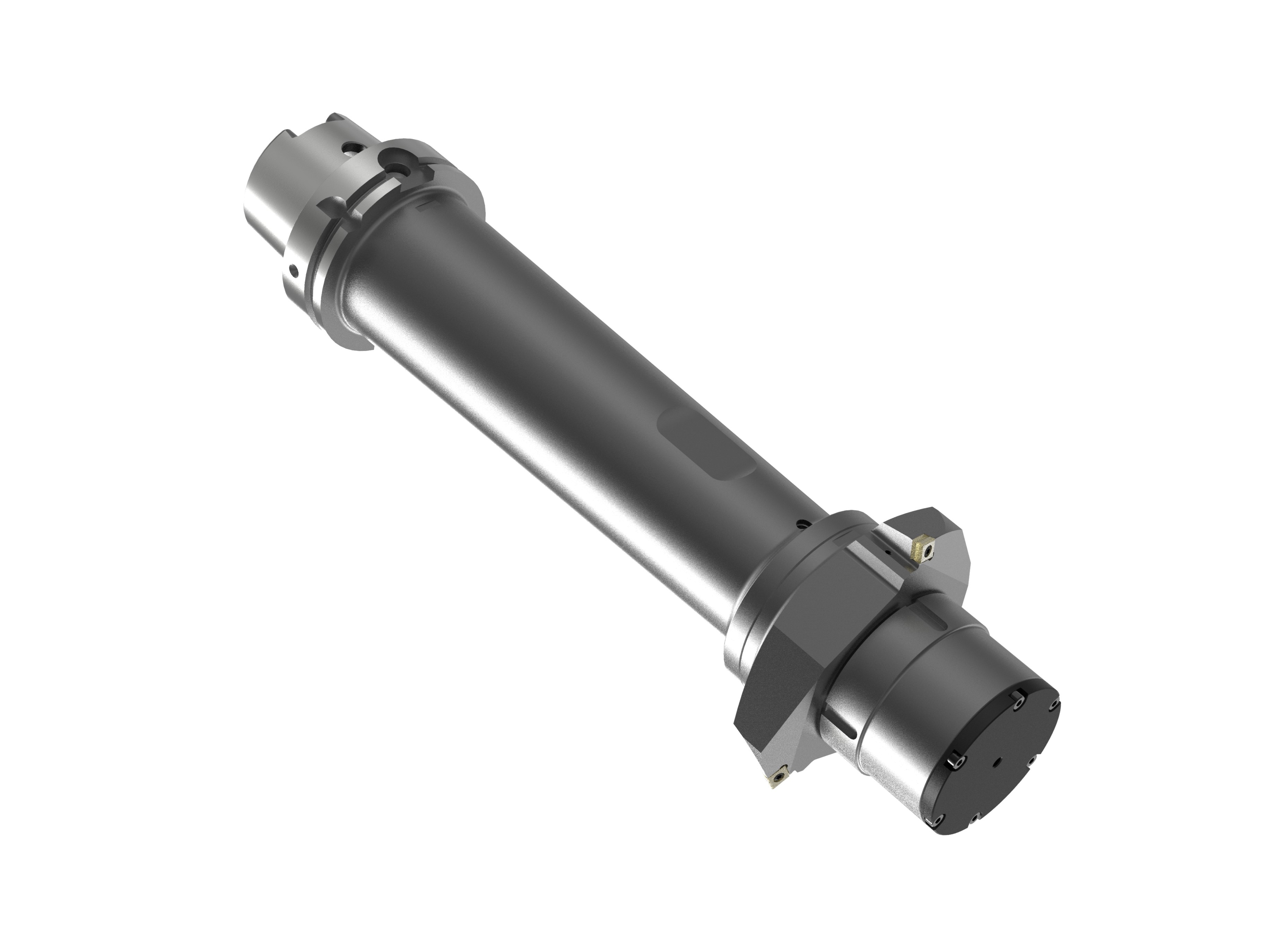

     Fine boring tool

    • Multi-blade fine boring technology offers the highest degree of quality when machining interrupted cuts at highly critical length/diameter ratios
    • Low cutting material costs for series production processes thanks to TEC indexable inserts

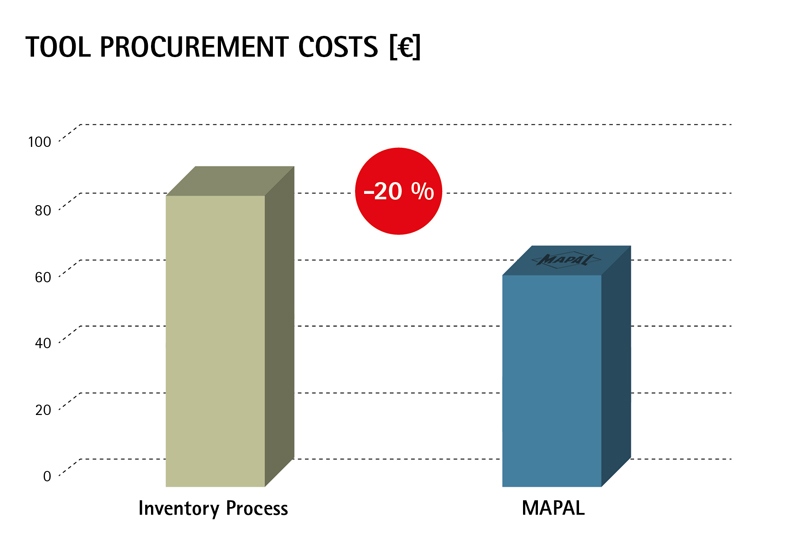

Tool procurement costs

Advantages

  • The digitalised MAPAL tool management service enables tools and processes to be managed smoothly and optimised continuously
  • Efficient end-to-end planning and engineering services from a single source – the Technology Expert Team
  • Multiple usage of existing MAPAL solutions, adapted to new projects and parts
  • Reliable overall process for pump chamber bores
  • Qualification of specialist personnel through training as well as support on site regarding the optimal use of the tool solution
