Another design award for the UNIQ hydraulic chucks

MAPAL receives sustainable Green Design Award

Another award for the hydraulic chucks of the UNIQ series from MAPAL. Following the iF Design Award and the Good Design Award, the tool manufacturer from Aalen has now also received the Green Design Award.

The picture shows the hydraulic chucks from the UNIQ series.
  • The picture shows the hydraulic chucks from the UNIQ series.
  • The picture shows the blue actuating screw of the UNIQ chuck.
  • The picture shows a UNIQ chuck in real-time operation
  • The picture shows another UNIQ chuck during machining.

When the precision tool manufacturer and technology partner MAPAL completely revised its hydraulic chucks in 2020, the focus was on making the entire to make the entire product range even more efficient and durable in daily use. in daily use. The new hydraulic chucks were to be given a uniform appearance - the requirement that the design should guarantee the greatest possible stability with optimum use of resources.

In collaboration with the design agency Ottenwälder und Ottenwälder from Schwäbisch Gmünd, the product managers at MAPAL developed a new design new design concept for the product family. In order to emphasize the uniqueness of the revised chucks chucks, the naming was based on the English word “unique”.


The picture shows the hydraulic chucks from the UNIQ series.

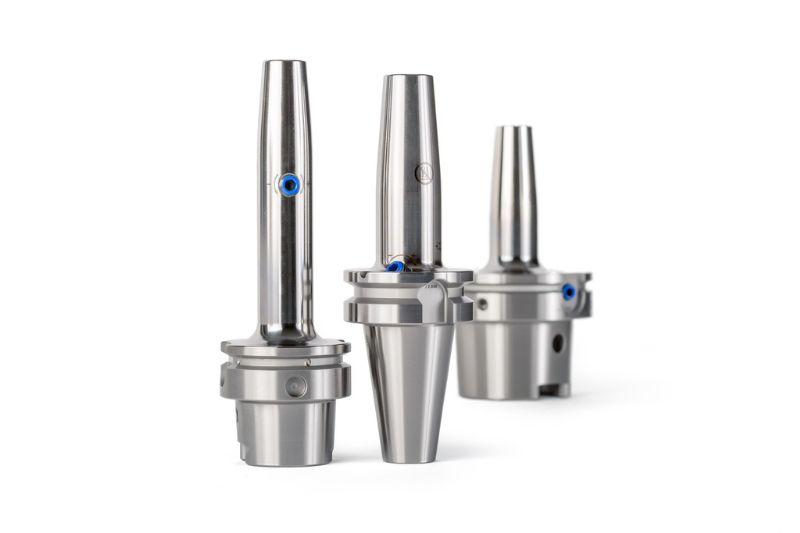

Already triple award-winning - the UNIQ hydraulic chucks from MAPAL. Most recently, they were honoured with the Green Design-Award for sustainable design.   ©MAPAL

The two hydraulic chuck series - UNIQ Mill Chuck and UNIQ DReaM Chuck - combine MAPAL's performance promise of quality and function quality and function, in particular through an optimum interplay of geometric and functional properties. Thanks to a polishing process newly developed for the UNIQ series the high-gloss surface of the chuck is more resistant to dirt and corrosion. more resistant to dirt and corrosion. MAPAL also attached great importance to making the use of the hydraulic chucks process reliability. The blue coloring of the of the actuating screw contributes to this. Specially created signatures also contain handling instructions. “The MAPAL chucks have a significantly unique design language,” says Petra Kurz-Ottenwälder, Managing Director of the design agency Ottenwälder und Ottenwälder.

When the first chucks were available after the development available, the agency submitted the UNIQ hydraulic chucks to the iF Award in 2020 - and to the iF Award - and was honored. This was followed in 2021 by the Good Design Award in 2021 and most recently, at the end of 2024, the sustainability-oriented Green Design Award, which focuses on sustainability.

“We are proud that we have won several internationally internationally recognized awards with UNIQ,” says Tobias Bayerle. The The development of the UNIQ series proves that you can not only win through practicality, but also that product design can offer customers added value. customers through product design. “If you can impress with performance and design, then you've you've done a lot of things right.”

However, it is even more important for Bayerle to emphasize that the UNIQ chucks have been very well received by existing and new customers from day one. “Since the introduction of the UNIQ series, we have always seen exponential growth in this exponential growth in this area,” he says.

Green Good Design Award honors sustainable design ideas

Die jüngste Auszeichnung für MAPAL und die Gmünder Agentur Ottenwälder und Ottenwälder ist der Green Good Design Award, mit dem das Chicago Athenaeum Museum of Architecture and Design jährlich Unternehmen und Personen kürt, die ein besonderes Augenmerk auf nachhaltiges Design legen. Ausgezeichnet wurden die beiden Unternehmen für das neu entworfene Design des Hydrodehnspannfutters UNIQ.

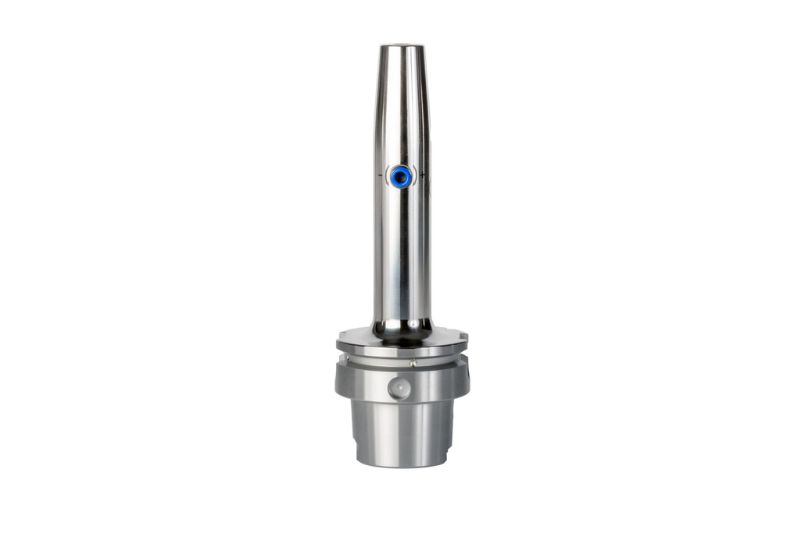

Das Bild zeigt die blaue Betätigungsschraube der UNIQ-Spannfutter.
Ein besonderes Designelement am UNIQ-Spannfutter ist die blaue Betätigungsschraube.   ©MAPAL

Was die UNIQ-Baureihen besonders nachhaltig macht

Ein Hydrodehnspannfutter eignet sich zur Wiederaufbereitung. Wird das Hydrauliköl beim Service aufgefüllt, ist das Spannfutter wie neu und bereit für eine zweite Lebenszeit. Ein UNIQ-Hydrodehnspannfutter schafft bis zu 15.000 Spannzyklen, was weit über dem durchschnittlichen Wert eines Schrumpffutters liegt.

Schrumpfgeräte sind Energiefresser, sie verbrauchen jährlich bis zu 12.000 Kilowattstunden und 3,6 Tonnen CO2. Dies wird durch den Einsatz eines UNIQ-Hydrodehnspannfutters eingespart.

Außerdem lässt sich ein Hydrodehnspannfutter wesentlich schneller wechseln. Beim Schrumpffutter benötigt man zwischen vier und sechs Minuten länger, was sich über die Zeit aufsummiert.

Zudem sind Hydrodehnspannfutter wesentlich sicherer im Handling. Beim Schrumpffutter verbrennt sich fast jeder Bediener im hektischen Arbeitsalltag mindestens einmal die Finger. Beim hydraulischen Spannmittel besteht dagegen keine Verbrennungsgefahr.


UNIQ Mill Chuck: Zuverlässig. Dynamisch. Agil

Das UNIQ Mill Chuck ist speziell für das Spannen von Fräswerkzeugen mit HA-Schaft ausgelegt. Durch die hohe Temperaturfestigkeit von 80 °C auch bei sehr langen Fräszyklen überzeugt es bei hochdynamischen Fräsanwendungen, wie SPM (Structural Part Machining), HSC (High Speed Cutting) oder HPC (High Performance Cutting), von hochwertigen Bauteilen mit einer ausgezeichneten Prozesssicherheit und hohem Zeitspanvolumen.  Es ist universell für Schrupp-, Semi- und Schlichtoperationen geeignet.

UNIQ DReaM Chuck, 4.5°: Visionär. Flexibel. Ökonomisch.

Das UNIQ DReaM Chuck, 4.5° ist für Reib- und Bohranwendungen sowie zum Einsatz mit Schlichtfräsern optimiert. Es ermöglicht mit minimaler Störkontur durch die Spanneinleitung im HSK-Bund maximale Steifigkeit bei geringem Materialeinsatz. Die Außenkontur des UNIQ DReaM Chucks ist eins zu eins an die DIN 69882-8 für Warmschrumpffutter angelehnt. Dadurch ist ein Umstieg von der Schrumpftechnologie zu Hydrodehnspannfuttern sehr einfach möglich.
