05.05.2025

Turnkey mit 78 passenden Tools

Zusammenarbeit der CHIRON Group und von MAPAL in den USA

Bei einer Turnkey-Maschine für einen Truck-Hersteller in den USA kommen sämtliche eingesetzten Werkzeuge und die Prozessauslegung von MAPAL.
  • Bei einer Turnkey-Maschine für einen Truck-Hersteller in den USA kommen sämtliche eingesetzten Werkzeuge und die Prozessauslegung von MAPAL.
  • Das von CHIRON für die Großserienfertigung entwickelte Bearbeitungszentrum DZ 25 P five axis.
  • Das von MAPAL entwickelte Werkzeug, eingebaut in der Maschine
  • Eine Anwendungstechnikerin arbeitet an der Maschine
  • Ein PKD-bestücktes Sonderwerkzeug von MAPAL
  • Eine von dem Sonderwerkzeug bearbeitete Grundbohrung
  • Der zu bearbeitende Bereich des Werkstücks.
  • Das von CHIRON für die Großserienfertigung entwickelte Bearbeitungszentrum DZ 25 P five axis.
Die CHIRON Group ist seit 1993 in den USA aktiv. 2001 wurde in Charlotte (North Carolina) ein modernes Werk eröffnet, wo auf einer Fläche von rund 7.000 Quadratmetern insgesamt 100 Mitarbeiter tätig sind. Hier geht es vor allem darum, die Maschinen aus deutscher Produktion an die Bedürfnisse der amerikanischen Kunden anzupassen. Von der Feinabstimmung hydraulischer Systeme bis hin zur Entwicklung fortschrittlicher Automatisierungs- und Turnkey-Lösungen liegt der Fokus klar auf Präzision und Effizienz. Diese Maschinen sind für die effiziente Produktion konkreter Bauteile ausgelegt und werden schlüsselfertig mit Software, Spannvorrichtungen und Werkzeugen ausgeliefert.
Das CHIRON-Werk in Charlotte (North Carolina) in den USA.
Seit 2001 verfügt die CHIRON America Inc. über ein modernes Werk in Charlotte (North Carolina).   ©CHIRON

Customer proximity is key

CHIRON Group has been active in the United States since 1993, with a modern factory opening in Charlotte in 2001. The 7,000-square-meter plant employs 100 employees focused on adapting German-built machines to meet the needs of the American industry. From fine-tuning hydraulic systems to developing advanced automation and turnkey solutions, the focus is on delivering precision and efficiency. These machines are designed for efficient production of specific components and are delivered to customers fully equipped with software, clamping fixtures, and tools—ready for immediate operation.

Like CHIRON Group, MAPAL also operates in the United States with two sites located in Port Huron, Michigan, and Fountain Inn, South Carolina. The precision tool makers and technology partners from Aalen/Germany recognised at an early stage that customer proximity was essential in the American market. This insight led to the establishment of MAPAL’s first international subsidiary in 1977. It began in New Jersey with the reconditioning of MAPAL tools. As MAPAL expanded into the automotive industry in the following years, business grew significantly. It soon became clear that the small factory was no longer sufficient. The next logical step involved setting up a manufacturing site closer to key automotive customers. MAPAL opened its production site in Port Huron in 1995 with a focus on manufacturing and reconditioning of high-precision tooling, such as reamers with guide pads. Through its proximity to Detroit, the company was able to provide faster response times and comprehensive technical support to customers.

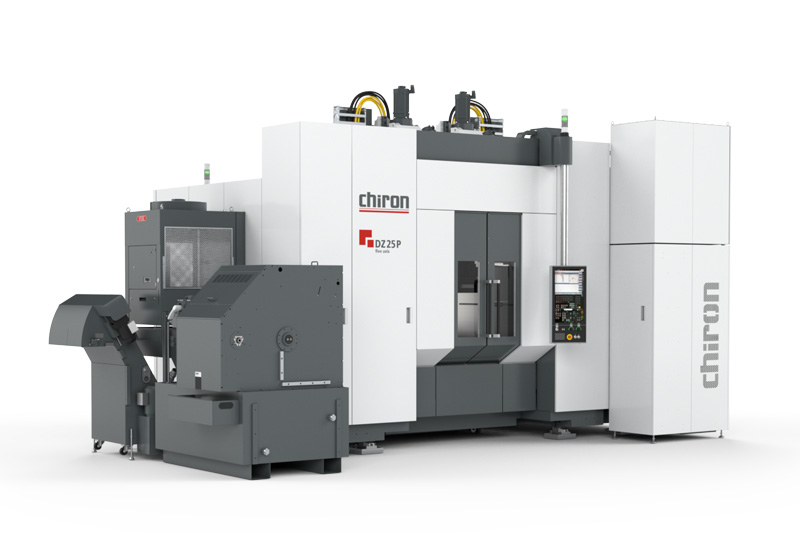

The machining center DZ 25 P five axis developed by CHIRON for highly productive maching.
The double-spindle machining center DZ 25 P five axis was specially developed by CHIRON for the highly productive machining of components in large-scale production.   ©CHIRON

By consolidating technical knowledge within its international Centres of Competence, MAPAL expanded its know-how and expertise in the manufacturing sector. In 2019, the precision tool maker expanded further by opening a second factory in the southern region. The Fountain Inn site enhanced sales, service, and manufacturing capabilities, complemented by a state-of-the-art aerospace test centre. Today, MAPAL Inc. manufactures solid carbide and PCD tools at both sites using technology and processes that adhere to the MAPAL Group’s global standards. The tools include drills with one or more diameters, form cutters, reamers, and tools for composite machining – all of which are also reconditioned in-house.

CHIRON Group and MAPAL have been cooperating in North America for nearly as long as the machine tool builder has been present in the region. As a trusted OEM supplier, MAPAL has supported CHIRON Group’s work across the automotive, aerospace, and medical technology industries, as well as their suppliers. “To offer our customers the best solutions, we need reliable partners – a quality MAPAL has consistently demonstrated,” says Jesus Flores, Lead Project Engineer at CHIRON Group in Charlotte.


The tool developed by MAPAL, installed in the machine
Two of the 600 x 600 x 450 mm components can be processed simultaneously on the DZ 25 P five axis from CHIRON.   ©CHIRON

Anspruchsvolles Bauteil

Auch beim jüngsten Projekt, einer Turnkey-Maschine für einen Truck-Hersteller, kommen sämtliche eingesetzten Werkzeuge sowie die Prozessauslegung von MAPAL. Bei dem zu produzierenden Bauteil handelt es sich um ein vorderes Getriebegehäuse für einen großen LKW-Dieselmotor. Um einen reibungslosen Start zu gewährleisten, unterstützte MAPAL den Kunden vor Ort in der Anlaufphase und beschleunigte die Bereitstellung optimierter Werkzeuge, sodass das Projekt vom ersten Tag an nach Plan lief.

Das hochkomplexe Bauteil mit zahlreichen Bohrungen und komplizierten Formen wird aus Druckgussaluminium A380 gefertigt. Der Endkunde plant, davon 120.000 Stück pro Jahr zu fertigen. Bei einer voraussichtlichen Produktionslaufzeit von sechs bis acht Jahren könnte die Gesamtstückzahl an eine Million Teile herankommen, bevor eventuell eine Designmodifikation ansteht.


Eine Anwendungstechnikerin arbeitet an der Maschine
Anwendungstechnikerin Kaylee Loyst bestückt das Werkzeugmagazin der Maschine. Alle 78 Tools kommen von MAPAL.   ©CHIRON

Die hohen Stückzahlen, in denen das Getriebegehäuse produziert werden soll, verlangen nach einer sehr effizienten Fertigung. Für diese Aufgabe wurde das doppelspindlige Bearbeitungszentrum DZ 25 P five axis gewählt, das die CHIRON Group speziell für die hochproduktive Bearbeitung großvolumiger Bauteile entwickelt hat.

Aufgrund der enormen Steifigkeit der Maschine sind hohe Dynamik und Präzision bei sehr hohen Achsbeschleunigungen und schnellen Eilgängen gewährleistet. Im geräumigen Arbeitsraum können zwei der 600 x 600 x 450 mm großen Bauteile gleichzeitig bearbeitet werden. In einem ersten Arbeitsschritt wird das Werkstück im angelieferten Zustand aufgespannt, um zunächst die Vorbearbeitung durchzuführen und so Spannungen aus dem Bauteil zu lösen. Dabei werden auch gleich Bearbeitungen mit mittlerer Toleranzgröße erledigt. Die exakte Bearbeitung von Passungsbohrungen und Flächen zum Referenzpunkt erfolgt in einer weiteren Aufspannung.


In the case of a turnkey machine for a truck manufacturer in the USA, all the tools used and the process design come from MAPAL.
They worked closely together on the turnkey project (from left): Markus Beerhalter (Global Project Engineer MAPAL) and Manuel Hipp (Head of Application Technology CHIRON) with a fine machining tool with ledge guide and finely adjustable cutting edge.   ©CHIRON

Two-thirds custom tools

The tools supplied by MAPAL play a key role. 78 tools have been provided, with two-thirds being custom-made and precisely designed to the corresponding machining step with special geometries and dimensions. In many cases, the complexity of the tools is a direct result of the component design or the selected machining strategy. Among them, 33 of the tools are PCD tools, while the remaining 45 use carbide cutting edges.

Whenever possible, multiple machining steps have been combined into a single tool, allowing the machining of various diameters in one operation. “Cycle times are reduced with these custom tools”, explains Jesus Flores. “In this way, we save multiple tool changes every time, which improves both the machining times and precision.” Besides speed, the components require a high level of precision and quality that surpass typical automotive industry standards.


A PCD-tipped special tool from MAPAL
PCD-tipped special tool for finishing a highly complex bore contour.   ©MAPAL
When it comes to positioning accuracy, a tolerance of 25 µm has been prescribed for diameter tolerances ranging from 8 to 10 µm. “This component has some of the highest quality requirements that I’ve ever seen. That’s a challenge for a workpiece of this size”, says Flores. The combination of cutting-edge machines and high-performance MAPAL tools has made the project a success. CHIRON Group highlights the quality of the PCD tools in particular, which are ideal for long production runs due to their extreme resilience and hardness.

Proactive support

CHIRON is satisfied with the results of its collaboration with MAPAL: “The quality of the tools is excellent. Their performance meets our requirements perfectly.” The support CHIRON Group has received in Charlotte since its collaboration with MAPAL began has made a significant impact. According to CHIRON, MAPAL’s tool design and application support have been outstanding. The proactive approach to collaboration has also played a key role. MAPAL consistently does more than just provide tools by offering tailored solutions and timely support whenever it is needed.
A base bore machined by the special tool
Für die Vorbearbeitung einer tiefsitzenden Grundbohrung wird das PKD-bestückte Sonderwerkzeug verwendet.   ©CHIRON
Lob für das gute Teamwork kommt auch von MAPAL. „Ich bin sehr stolz auf die Zusammenarbeit, die es ermöglicht hat, dieses große Werkzeugpaket innerhalb des engen Zeitrahmens fertigzustellen, den der Endkunde vorgegeben hat“, sagt Evan Osantoski, Vertriebs- und Anwendungsingenieur aus Michigan. Vom Projektstart bis zur Kundenfreigabe dauerte es gerade einmal acht Monate. Die CHIRON Group und MAPAL wollen in den USA weiter zusammenarbeiten und haben bereits neue gemeinsame Projekte in Aussicht.
Der zu bearbeitende Bereich des Werkstücks.
Ansicht des zu bearbeitenden Bereichs des Werkstücks. Das Werkzeug wird für die Fertigbearbeitung der Reiboperation eingesetzt und erreicht eine Passungsqualität IT6.   ©CHIRON
Das von CHIRON für die Großserienfertigung entwickelte Bearbeitungszentrum DZ 25 P five axis.
Das Team von CHIRON zusammen mit zwei Mitarbeitern von MAPAL (von links): Jose Morado (Auszubildender), Kaylee Loyst (Anwendungstechnikerin), Jessica Korolev (Marketing und Kommunikation), Manuel Hipp (Leiter Anwendungstechnik), Jesus Flores (Leitender Projektingenieur), Philipp Reich (Betriebsleiter), Markus Beerhalter (Globaler Projektingenieur MAPAL) und Shane Anderson (Vertriebsingenieur MAPAL).   ©CHIRON
