少量生産 – コンビネーションツールによる工具交換の削減

バルブケース FCD-300 - スプール穴

お客様の初期の加工状況

Valve block

  • 少量生産
  • ツール調整機能あり
  • 過度なツール交換
  • 高い機械稼働率
  • 次工程のワンパスホーニングによる高い費用の発生

ソリューションの特徴

  • インサート付き多段式ガンボーリング工具の採用により、工具交換回数を削減
  • 形状をワンショットで完成
  • ファインボーリングツールは、最高の加工穴品質を実現し、両側からの基準となる前加工穴のアライメント誤差の補正が可能

スプール穴

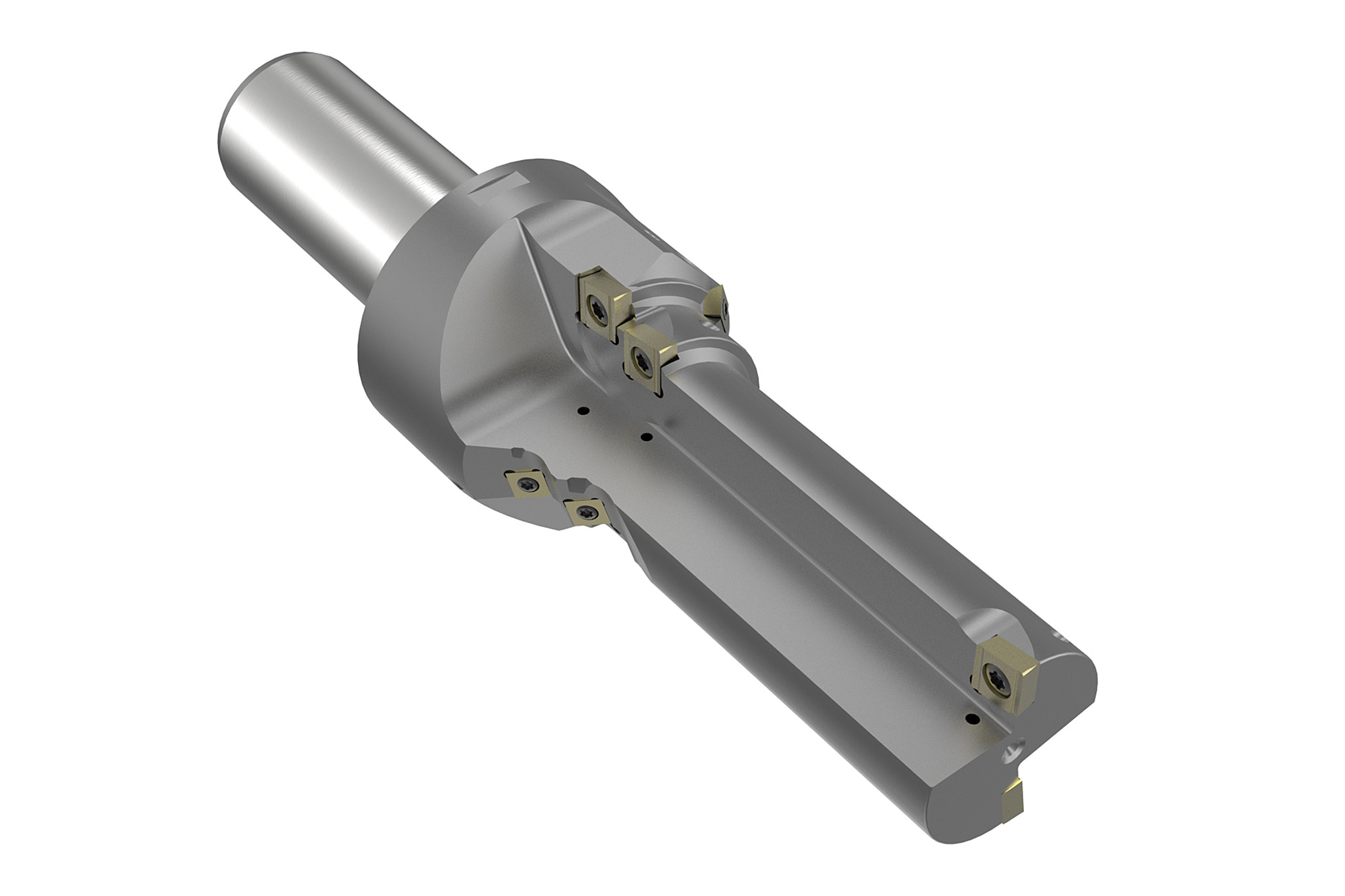

Piloting and boring

1. パイロット穴加工とボーリング

  • ラジアルおよびタンジェンシャルインサート付き多段式ガンボーリング工具
  • スプール穴の前加工と形状の仕上げを一度に行うことが可能

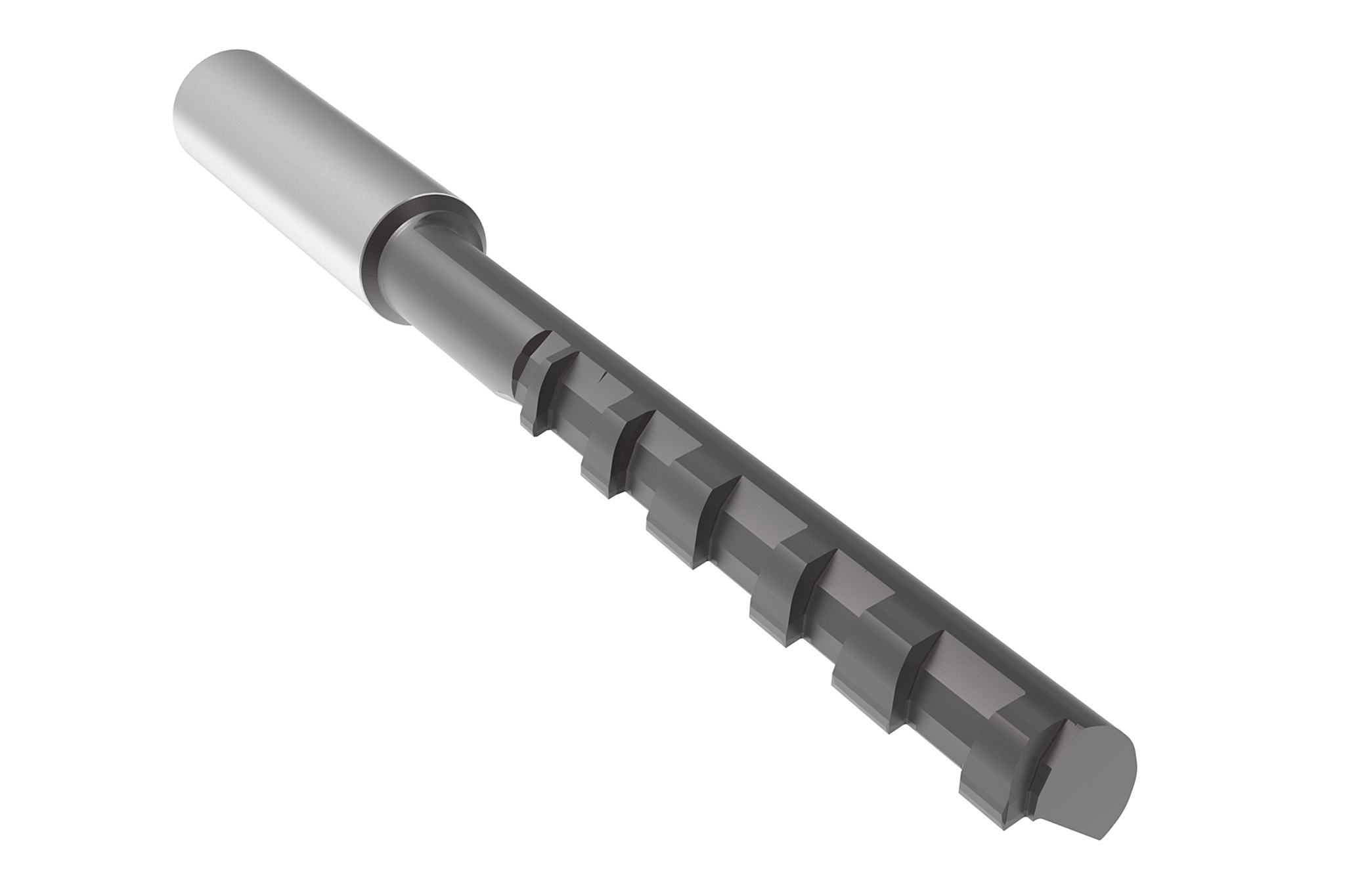

Control edge machining

2. Control edge machining
  • Solid carbide profile tool
  • Highest accuracy and surface finish of control edges
  • Defined control edges without macroscopic flaws

Fine boring

3. Fine boring
  • Fine boring tool with indexable inserts and guide pads
  • Ideal for bar machining of highly accurate and long bores

ANNUAL PRODUCTION COSTS OF THE COMPENSATOR BORE [€]

Advantages

  • Optimally matched process due to solution with multi-stepped boring tool with indexable inserts, control edge machining and fine boring
  • Best accuracy and process reliability
  • Reduced effort when honing, resulting in cost savings
