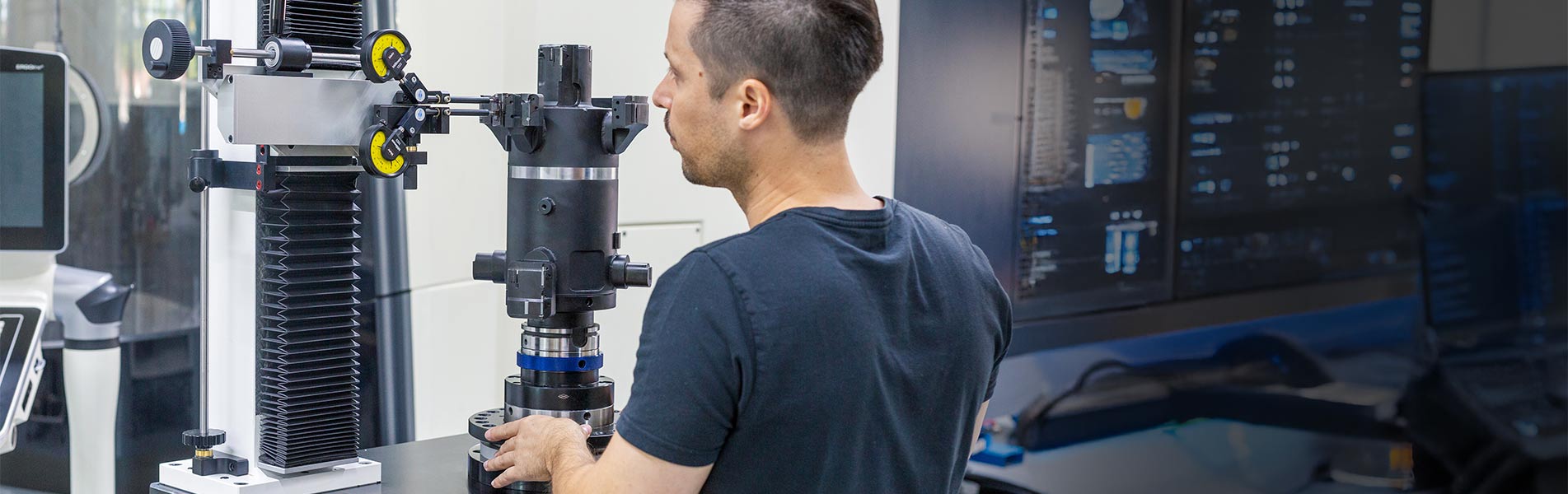

Uniset-V-basic-plus in operation.

UNISET-V basic plus

Técnica de ajuste precisa para herramientas de taladrado de precisión de gran tamaño

MAPAL cierra la brecha entre los dispositivos de ajuste mecánicos y los dispositivos de ajuste CNC.

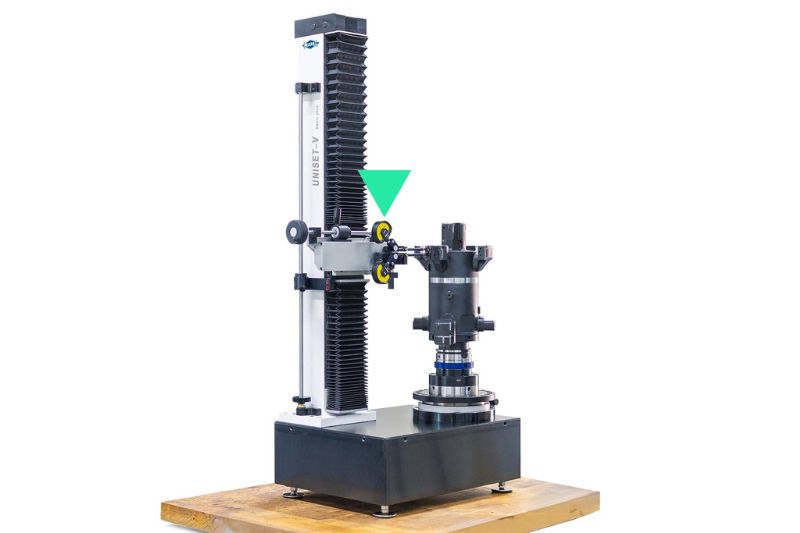

  • Photo of the Uniset-V-basic-plus with tactile cutting edge adjustment.
    1 / 4

    Ajuste táctil de los filos de corte

    • Manejo sencillo y preciso
    • Ajuste de alta precisión del sobresaliente y del estrechamiento

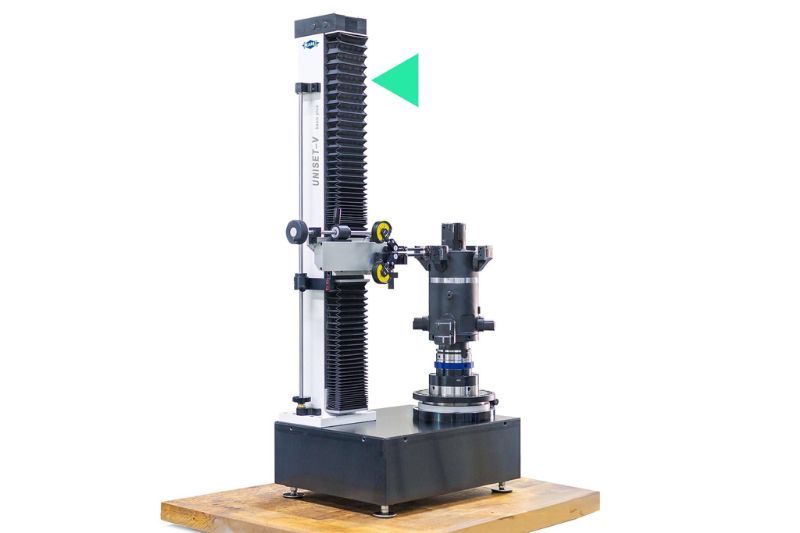

  • Photo of the Uniset-V-basic-plus with stable welded construction.
    2 / 4

    Estructura soldada estable

    • Proceso de ajuste sin vibraciones
    • Rentable con gran estabilidad

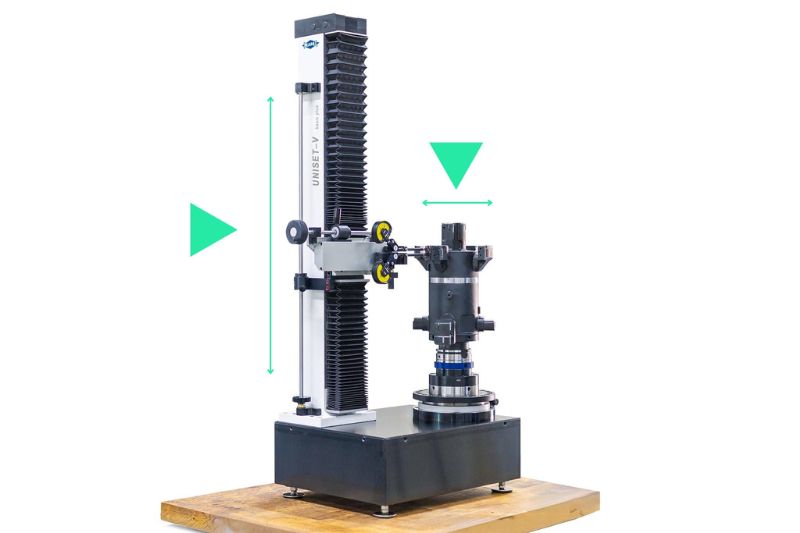

  • Photo shows the Uniset-V-basic-plus and how versatile it is.
    3 / 4

    Uso versátil

    • Diámetros de 100 a 400 mm
    • Largo de medición de hasta 750 mm y peso de herramienta de hasta 45 kg

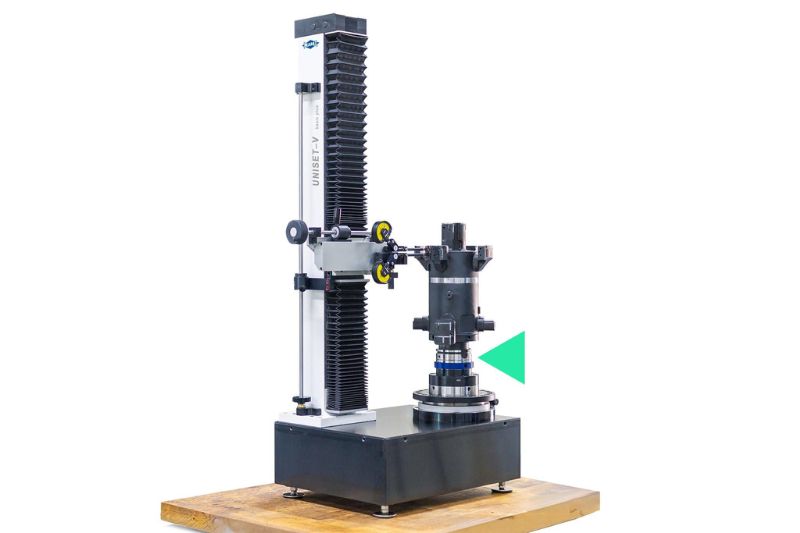

  • Photo of the Uniset-V-basic-plus with modular design.
    4 / 4

    Estructura modular

    • Adaptable mediante opciones de equipo y variantes de husillo
Con el UNISET-V basic plus, MAPAL lanzará a inicios de 2026 un dispositivo de ajuste manual diseñado de forma específica para herramientas de taladrado de precisión de gran tamaño. Su compra es ideal sobre todo para pequeñas y medianas empresas que hasta ahora habían prescindido de una técnica de ajuste precisa por motivos económicos.

At the same time, the UNISET-V basic plus also offers larger operations a cost-effective solution with high weights and large diameters. It is positioned in the MAPAL product range between the entry model MASTERSET and the CNC-based expert devices.
The device is designed for tools of 100 mm to 400 mm in diameter, up to 45 kg in weight and a large number of connections. With a stable welded design and modular construction, it is particularly robust, yet flexible in use: the UNISET- V basic plus can also be placed right next to the machine, as well as in the setting room.
It is operated using a two-button principle, which enables sensitive and micrometre-precise setting of cutting edge overhang and back taper for fine boring tools.
