OptiMill-Composite-Speed-Plus
A new dimension of process reliability

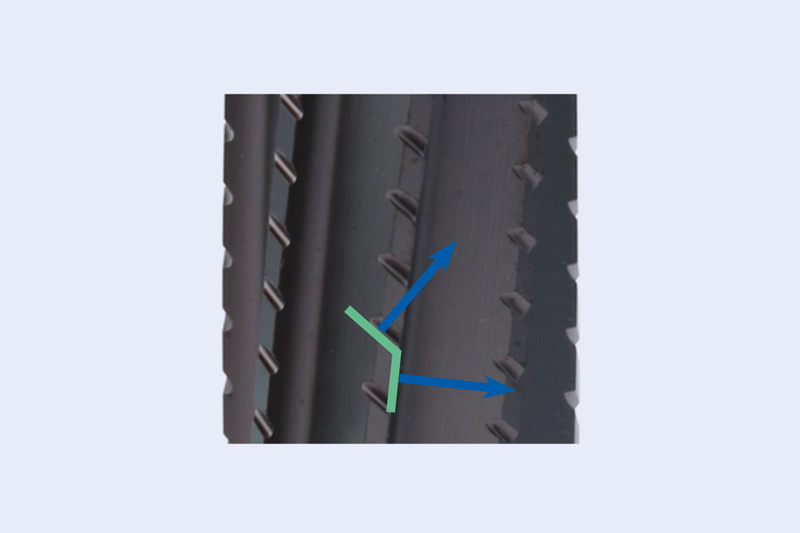

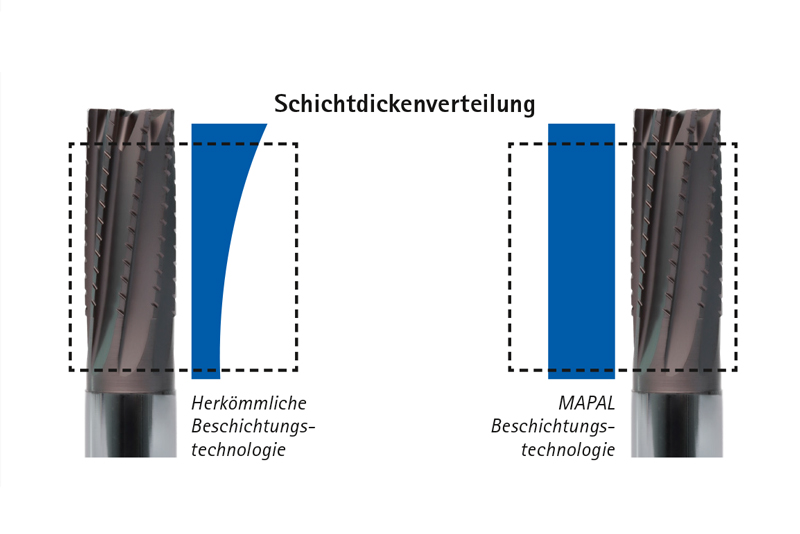

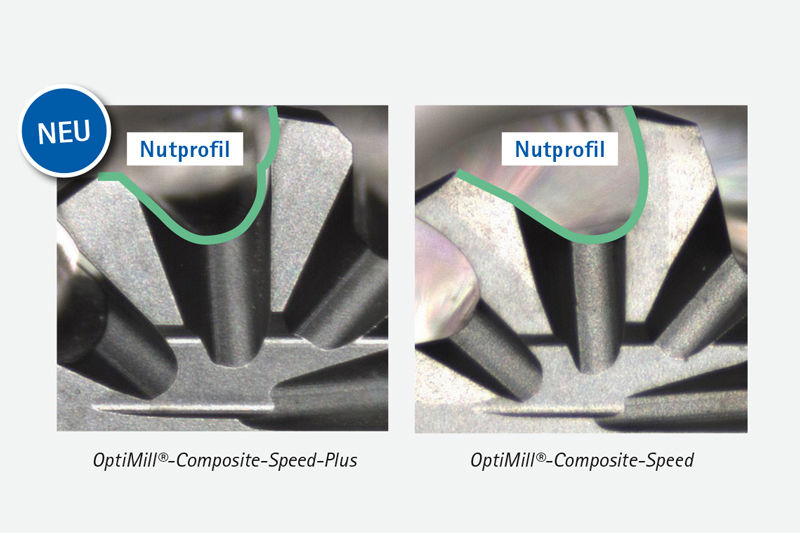

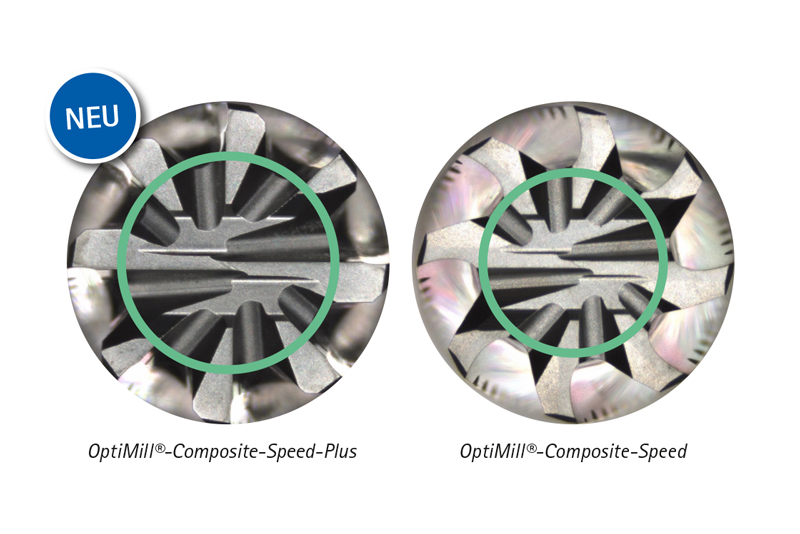

The OptiMill-Composite-Speed-Plus features a new diamond coating developed by MAPAL with even distribution and higher coating thickness. The bigger core diameter increases fracture strength by 50 percent. The improved groove profile ensures efficient, reliable removal of dust and process heat even when machining large volumes. The cutting wedge has been specially optimised to meet the requirements of brittle workpiece material. The special cuttingedge serration causes double compression so that fibre fraying on the workpiece edges of the upper and lower sides are reliably separated.
This allows the OptiMill-Composite-Speed-Plus to attain a new dimension in process reliability.Compared to the OptiMill-Composite-Speed, 20 percent longer tool life is achieved.
Customer Benefits
Novo design de ferramenta para mais produtividade
Visão geral das variantes
OptiMill-Composite-Speed-Plus
Shoulder milling cutter, coated
First choice in good process conditions
Stiff machining conditions
Good for high demands on productivity
Diameter range: 4.00-20.00mm
With pulling or pushing cutting edge
OptiMill-Composite-Speed-Plus
Shoulder milling cutter, uncoated
First choice for unfavorable process boundary conditions
Robust against vibrations
Good for low abrasiveness, e.g. B. GRP and natural FRP
Diameter range: 4.00-20.00mm
With pulling or pushing cutting edge
